Calculate theoretical road speed for VW 01M 4-speed automatic variants, then check which assumptions need confirmation before a donor swap, TCM match, or ratio change.
Published July 28, 2026. Last reviewed July 28, 2026.
The 01M is a 4-speed automatic family, not one universal ratio sheet. Use the presets for screening, then confirm the stamped transmission code before ordering parts, swapping units, or matching a TCM.
Public references commonly show 3.700, 4.222, 4.267, and 4.875 final-drive families. The same engine label can still vary by market, model year, and code, so ratio math must be treated as a validation step rather than a direct interchange approval.
The calculator assumes a locked converter and measured tire diameter. During non-locked phases, heat, slip, load, and tire growth can make the observed road speed differ from the table.
In a conventional automatic transmission like the 01M, planetary gearsets provide the forward gear ratios. The ratio represents the mechanical multiplication of the input shaft speed before it reaches the final drive.
Because the engine is coupled to the transmission via a fluid coupling (the torque converter), the input speed to the gearbox is not always equal to the engine RPM until the lock-up clutch is fully engaged (typically in higher gears).

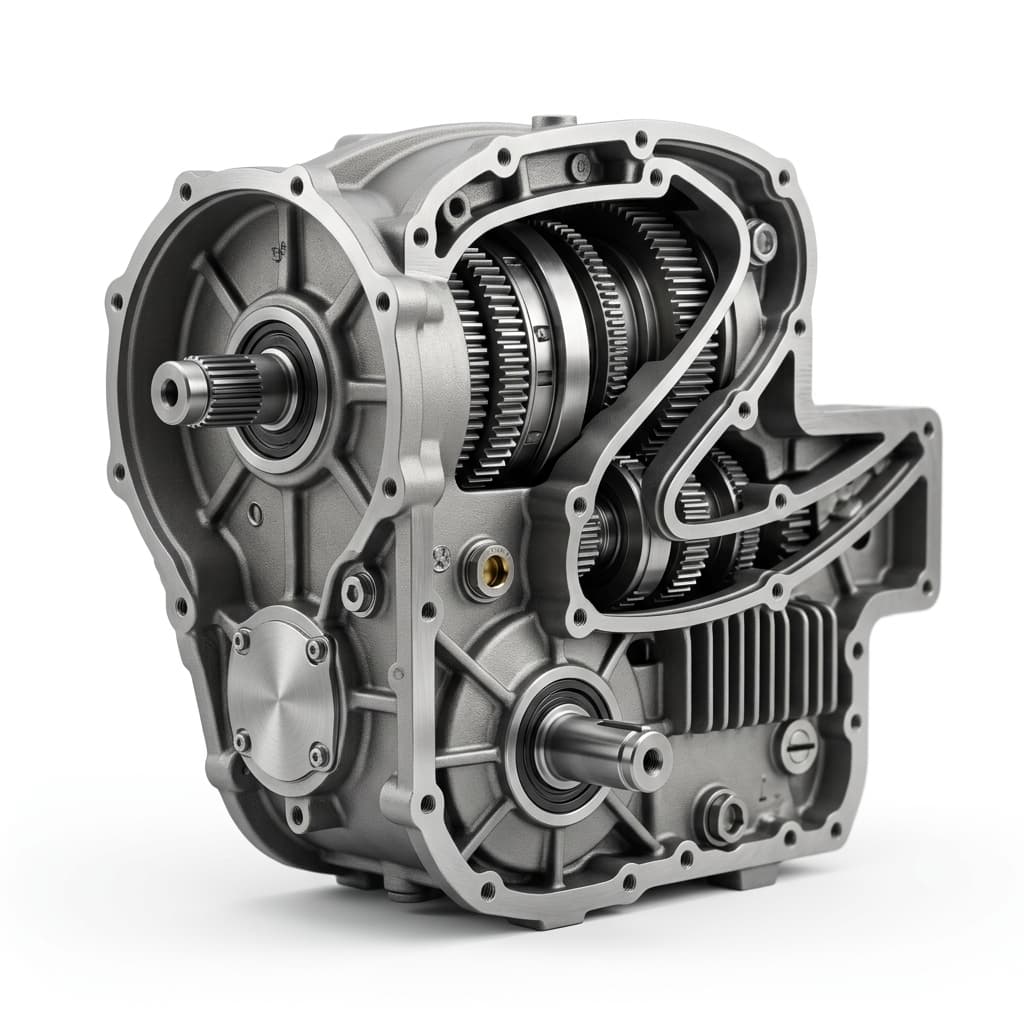

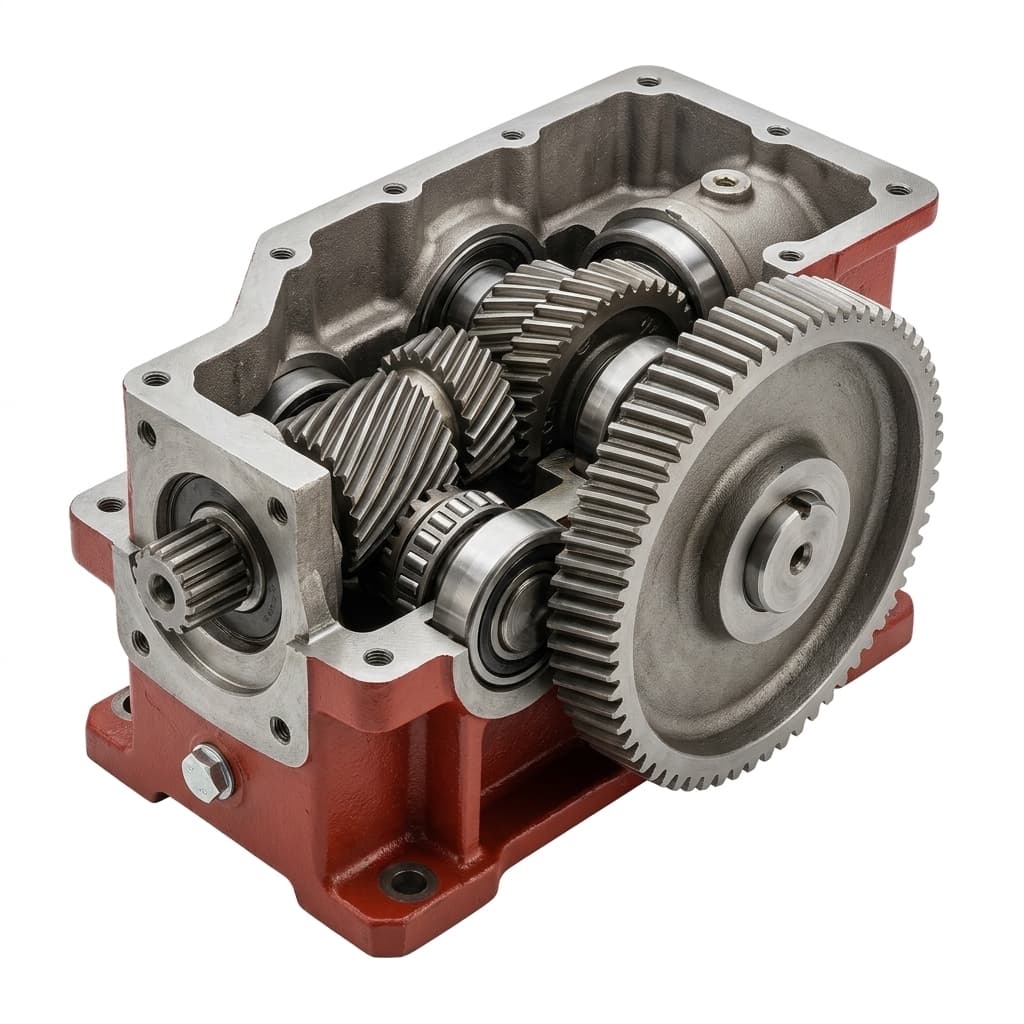

Generic automatic gearbox cutaway shown for calculation-path context; stamped 01M transmission code and factory service data remain the decision source.
The VW 01M transmission was widely deployed across Golf, Jetta, New Beetle, and related transverse platforms. Public ratio tables show multiple 01M ratio families, so the correct workflow is to screen the likely family, read the stamped transmission code, then validate the donor unit against VIN-level parts data and TCM calibration.
| Ratio Family | 1st | 2nd | 3rd | 4th | Use This For |
|---|---|---|---|---|---|
| Tall 01M family | 2.714 | 1.441 | 1.000 | 0.742 | Use for low-numerical final-drive screening where cruise RPM matters more than launch multiplication. |
| Short Mk4 2.0L gas family | 2.714 | 1.551 | 1.000 | 0.679 | Use for common Mk4 2.0L gas screening where the 4.875 final drive dominates road speed. |
| Legacy 2.0L family | 2.714 | 1.441 | 1.000 | 0.743 | Use for older 01M references that show the 0.743 fourth gear and 4.222 final drive. |
TCM Limp Mode Risk: The Transmission Control Module (TCM) compares expected and observed ratio behavior. Installing an 01M with an unmatched final drive or gearset can trigger mechanical-ratio faults and fail-safe behavior even when the bellhousing and mounts physically fit.
| Engine Application | Evidence Basis | Forward Ratios | Final Drive Ratio | Cruise Profile |
|---|---|---|---|---|
| 1.9L TDI screening family | Representative 3.700 final-drive family; verify code plate | 2.714 / 1.441 / 1.000 / 0.742 | 3.700 | Lower cruise RPM; sensitive to TCM and donor-code mismatch |
| 2.0L 8v gas, Mk4 screening family | Common DYQ/DYG-style public-ratio reference family | 2.714 / 1.551 / 1.000 / 0.679 | 4.875 | Higher road speed multiplication for a low-torque gas engine |
| 2.8L VR6 screening family | Representative 4.267 final-drive family; verify exact donor code | 2.714 / 1.441 / 1.000 / 0.742 | 4.267 | Taller than 2.0L gas, matched to larger-engine torque curve |
| 2.0L 8v gas, Mk3/legacy screening family | Common CLK/CNK-style public-ratio reference family | 2.714 / 1.441 / 1.000 / 0.743 | 4.222 | Legacy application tuning; do not assume Mk4 interchange |
Bore wear in the aluminum casting leads to pressure leaks, presenting as TCC shudder, flared shifts, and solenoid codes like P0740/P0741. Proper diagnosis requires vacuum testing. Additionally, the internal ribbon cable wiring harness is extremely fragile, often breaking and causing false solenoid errors.
Before repair, confirm the exact ATF, final-drive lubricant, fill temperature, and service boundary for the transmission code and vehicle VIN. Some quick references separate the automatic section from final-drive service checks, and mixing assumptions across markets can create a correct ratio plan but an unsafe service plan.
Treat the table below as a traceability layer for this page, not as a replacement for the factory repair manual. Ratio references are enough for early speed and donor screening, but final decisions should be tied to the transmission code stamped on the unit, VIN-level parts data, and the TCM calibration used in the vehicle.
| What It Supports | Reference | Reviewed | Decision Limit |
|---|---|---|---|
| Ratio and final-drive cross-check | Techtonics Tuning VW transmission ratio tables | July 28, 2026 | Public tables are useful for screening, but stamped transmission code and VIN parts data remain the decision source. |
| 01M operating model | Volkswagen 01M technician guide reference copy | July 28, 2026 | Used for torque-converter, planetary gearset, and diagnostic context rather than market-specific build coverage. |
| Service boundary reminder | Moveras 01M technical quick-reference | July 28, 2026 | Fluid, torque, and service values vary by model year and market. Confirm the factory service manual before filling or repairing. |
Maintenance policy: review this 01M gearbox ratios page every 6 to 12 months, or sooner when ratio references, service guidance, or source availability changes.
| Feature | Screening Value | Engineering Limit |
|---|---|---|
| Max Input Torque | Treat stock 01M torque capacity as a conservative factory-power envelope, not a tuning target. | Extra torque and heat accelerate clutch, valve body, and converter wear. Use service history, fluid temperature, line-pressure testing, and specialist rebuild guidance before approving a higher-output build. |
| ATF System (Trans) | Verify ATF specification by VIN and factory service data. | Do not mix fluid families or rely on generic multi-vehicle labeling. The 01M is sensitive to fluid level, temperature during fill, and valve body condition. |
| Differential Fluid | Check whether the differential section has a separate lubricant requirement for the exact vehicle. | If the final drive service boundary is missed, a speed calculation can still be correct while the hardware plan is unsafe. Confirm fill points, capacity, and oil spec before repair. |
Due to the limitations of the 01M, many engineers evaluate manual gearbox retrofits (like the 02J or 01E) for higher durability.
Compare 01E Manual RatiosIf evaluating gearboxes for custom automation rather than automotive repair, modern industrial precision units provide superior reliability.
Industrial automation gearboxesNeed a specific torque or speed profile? Download our RFQ template to structure your engineering requirements.
Download the RFQ worksheetFor custom ratio review, collect shaft, flange, mounting, and file-format inputs before requesting matched CAD or drawings.
Review CAD request inputsThe VW 01M is a 4-speed automatic transmission. Public ratio references show more than one forward-ratio family, commonly including 2.714 first gear and either 0.679 or about 0.742 fourth gear. It also uses a torque converter, so actual vehicle speed under acceleration can be lower than the theoretical locked-converter result.
Different 01M variants use different final-drive families, with common screening values including 3.700, 4.222, 4.267, and 4.875. Swapping final drives requires transmission disassembly, matching ring-and-pinion hardware, and matching the TCM expectation, so a complete unit with the correct stamped code is usually the safer path.
Fourth gear is an overdrive in the common 01M families, often around 0.679 or 0.742:1 depending on code. At highway speeds, aerodynamic drag increases sharply, and torque converter lock-up status can change the final RPM-to-speed relationship.
The 01M is sensitive to excessive heat and torque. Valve body upgrades and external coolers can reduce symptoms in mild builds, but internal clutch capacity, planetary hardware, fluid condition, and TCM calibration remain limiting factors. Use the calculator for speed screening, not as durability approval.
