RFQ Checklist
- Describe the machine module and motion cycle
- Send required torque, speed, ratio, and backlash target
- Confirm motor type, shaft dimensions, and mounting envelope
- State preferred gearbox family or open selection constraints
← Back to Products
Industrial Automation Gearbox
Gearbox supply for automated machinery, transfer lines, indexers, rotary tables, conveyors, and special-purpose equipment that require stable torque transmission.
Target Buyer:Machine builders that need a gearbox supplier able to discuss real automation constraints instead of only sending catalog pages.
Capability Highlights
- Selection support across cycloidal, planetary, worm, and custom reducer families
- Designed for repeatable automation duty instead of one-off hobby motion
- Interface adaptation for OEM machinery builders and retrofit teams
Typical Applications
- Rotary indexers and transfer machines
- Packaging, palletizing, and material handling lines
- Industrial manipulators and servo positioners
- Custom automation modules
Engineering Focus
- Continuous duty torque and thermal balance
- Shaft orientation, mounting envelope, and service access
- Shock load, stop-start frequency, and lubrication interval
- Motor adapter, coupling, and encoder clearance
Key Evaluation Matrix
| Metric | Typical Range | Why It Matters |
|---|---|---|
| Duty cycle | Intermittent to 24/7 production | Continuous automation duty can require derating compared with short-cycle prototype tests. |
| Service factor | 1.2 to 2.0 plus shock allowance | Proper service factor reduces early wear in stop-start automation systems. |
Public Selection Matrix
Subseries and Specification Coverage
Use this matrix to identify the right engineering review path before requesting model-specific CAD, drawings, or a drop-in replacement check.
| Subseries | Scope | Public Specs to Check | Buyer Use |
|---|---|---|---|
| Servo planetary gearbox | Compact inline or right-angle reducer packages for repeatable automated positioning axes. |
| Use this family for pick-and-place, indexing, packaging, and machine automation axes that need fast commercial matching. |
| Cycloidal automation reducer | High shock-load reducers for indexing tables, weld positioners, transfer cells, and start-stop production equipment. |
| Use this family when torque spikes and long duty cycles matter more than the smallest possible package size. |
| Right-angle automation reducer | Bevel, worm, and compact right-angle packages for space-constrained automation layouts. |
| Use this family when the machine envelope or motor direction forces a 90-degree drivetrain layout. |
Risk Controls
- Undersized reducer in high-cycle equipment: Use real cycle data and shock assumptions instead of static load only.
- Slow quote loop from missing interface details: Provide a motor drawing and available installation envelope in the first RFQ.
RGB-IA
CAD and Datasheet Availability
Engineering checks thermal load, servo match, mounting orientation, and backlash target before CAD release.
Public spec status
Product-family brief and RFQ worksheet are public.
CAD release status
Released after duty-cycle and interface review.
Accepted formats
STEP, IGES, SolidWorks, 2D PDF on request
Minimum inputs before CAD
- Continuous and peak torque
- Cycle profile
- Servo motor frame
- Mounting orientation
Matched package after review
- Servo interface direction
- 3D envelope
- Mounting drawing
- RFQ risk notes
Engineering Downloads for This Product
Use the no-login worksheets before sending drawings or requesting model-specific CAD. They help engineering confirm torque, backlash, interface, inspection, and replacement assumptions for Industrial Automation Gearbox.
- Download the public engineering brief for the Industrial Automation Gearbox family before requesting matched datasheets, drawings, or CAD files.
- Download the engineering asset index to check public worksheet availability, CAD release status, and minimum inputs for this product family.
- Download the gearbox RFQ template to structure torque, ratio, backlash, duty cycle, quantity, and delivery inputs.
- Download the replacement review checklist when comparing an incumbent gearbox, catalog model, or damaged installed reducer.
- Download the inspection document request to align dimensional, material, heat-treatment, run-in, and OQA records before PO.
- Download the CAD package manifest to review release gates for datasheets, 2D interface drawings, 3D CAD envelopes, and inspection file sets.
- Open the CAD and datasheet library to check package layers and revision controls before requesting model-specific files.
- Open the full engineering resource center for CAD release policy, export packing inputs, and buyer workflow guidance.
- Send a structured RFQ with this product context so engineering receives the product family, source page, and public brief reference before reviewing attachments.

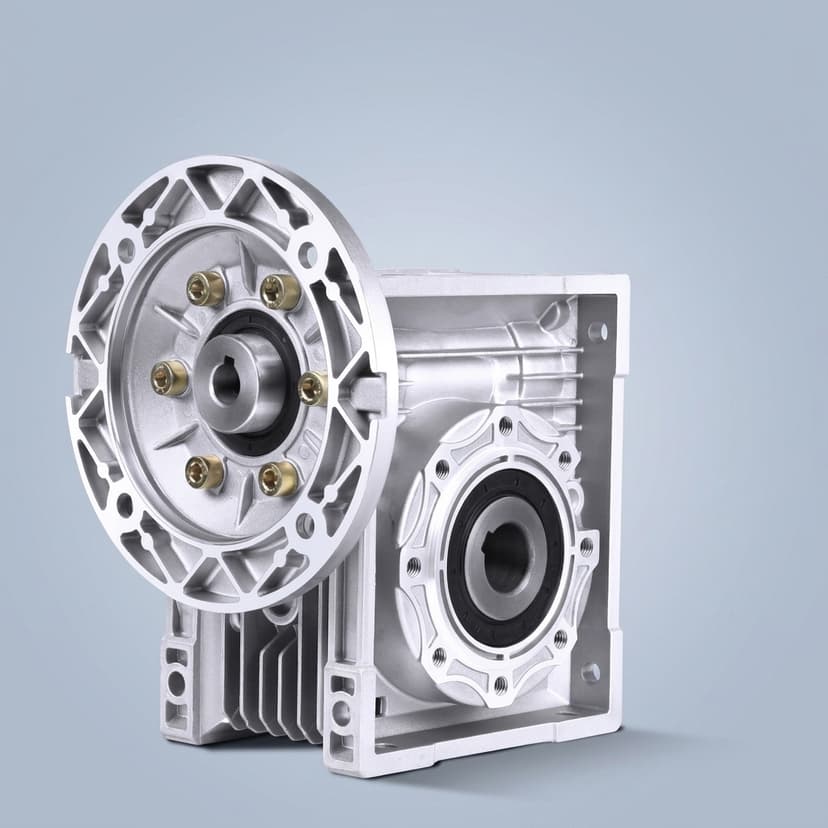

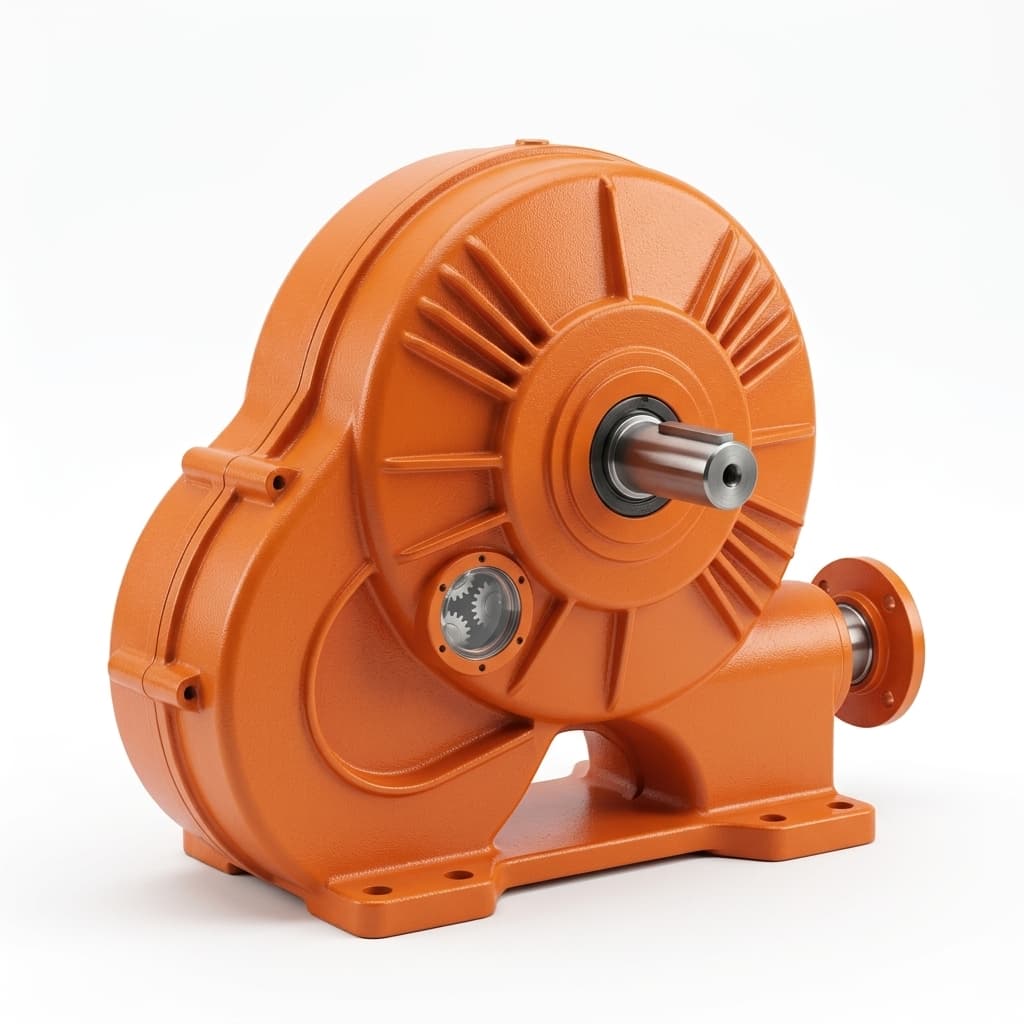

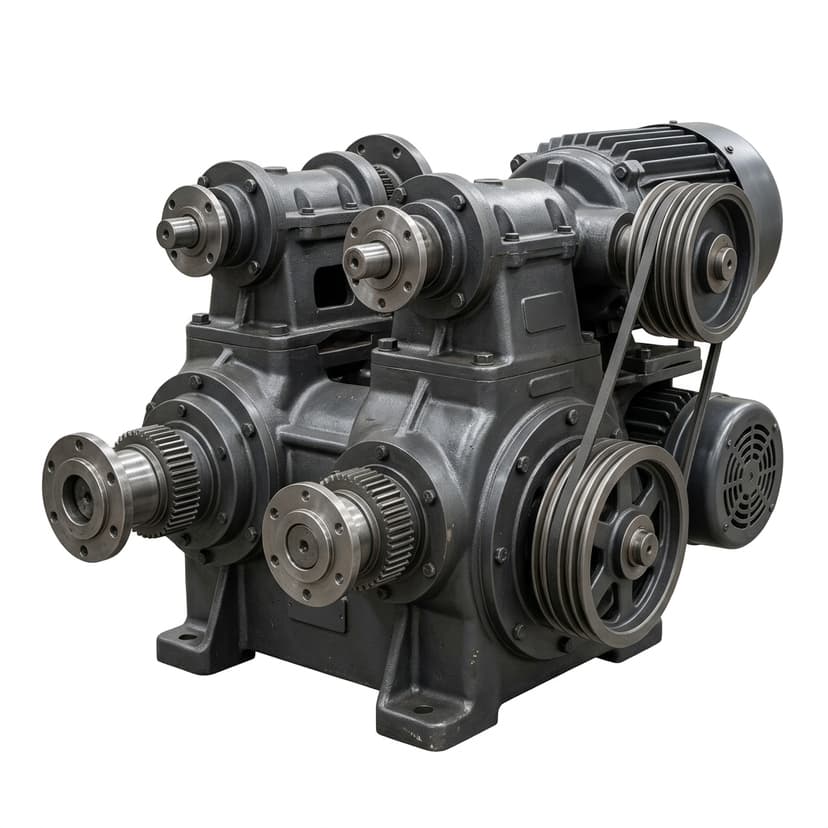

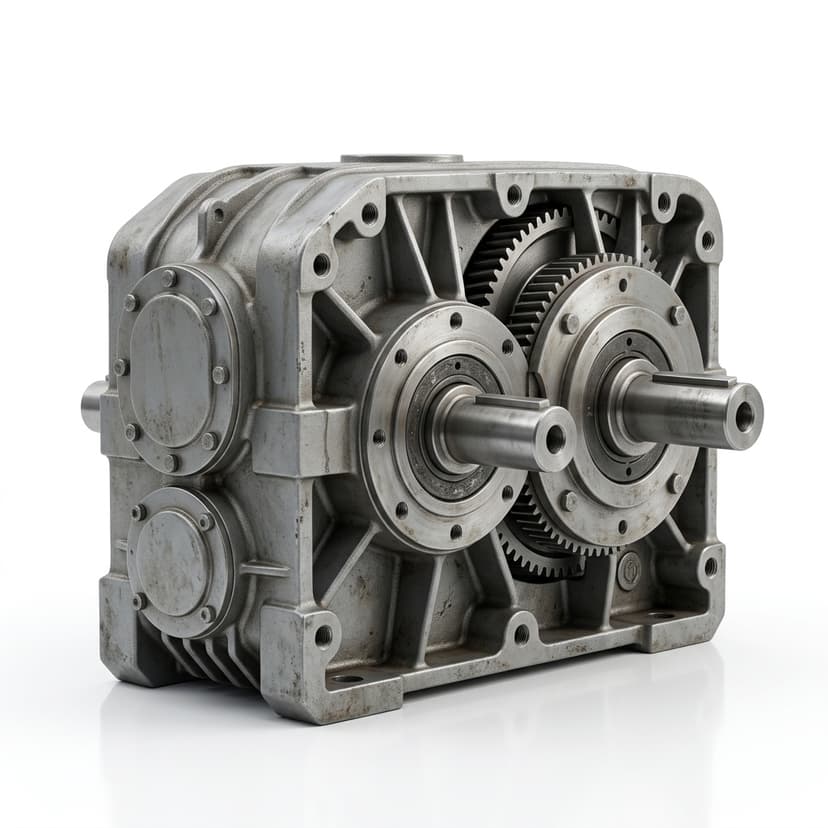

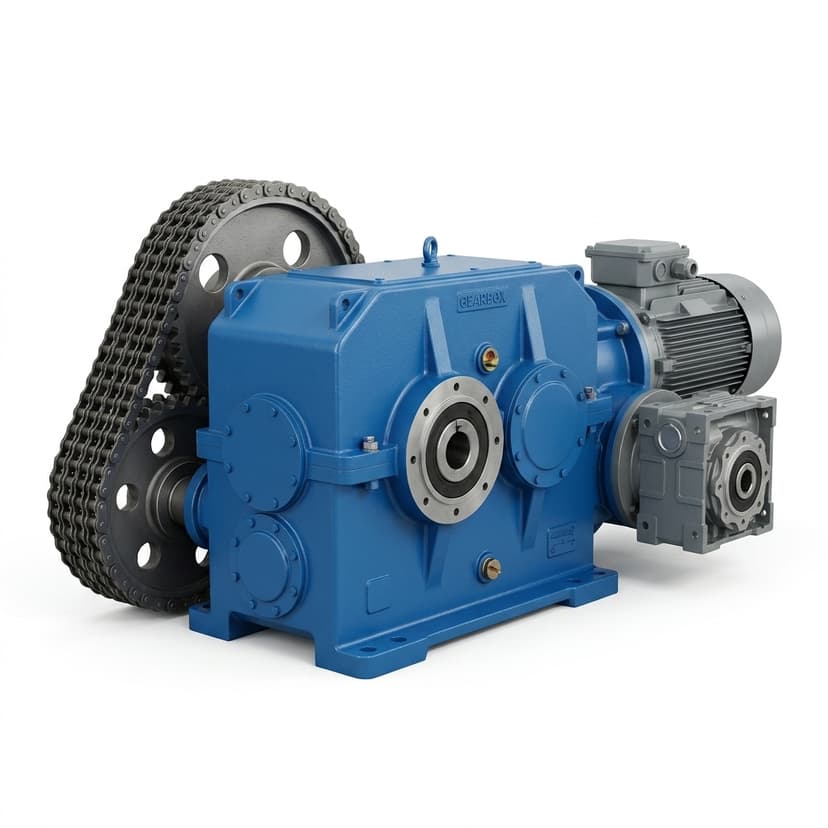

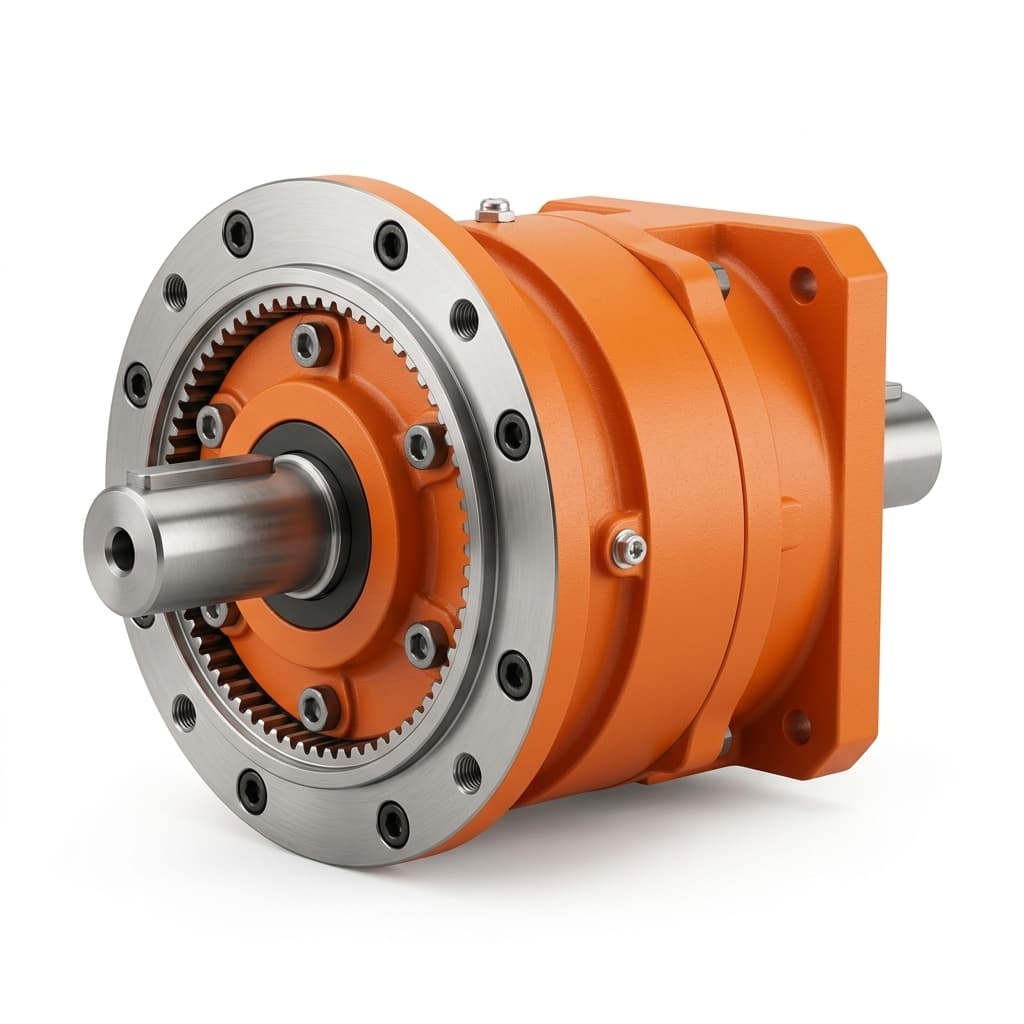

Product Gallery
Buyer FAQ
Can you help choose a gearbox family for a new automation machine?
Yes. Send the load profile, space envelope, accuracy target, motor data, and commercial target. We will recommend a practical quotation path.
Do you support small prototype quantities?
Prototype and pilot quantities can be reviewed, especially when there is a clear annual forecast or repeat machine program.
Related Resources
Engineering review: send your application requirements
Inquiry Email
Please attach 2D/3D CAD drawings, target torque/speed, and quantity.
